2002 Voith Fourdrinier 115" Reel Trim Paper Machine #46414

Basis Weight Range: 200-600 g/m2

Wire Width: 134.0" (3403.6 mm)

Reel Trim: 115" (2880 mm)

Structural Design Speed: 2,000 FPM

Drive Speed: 1500 FPM

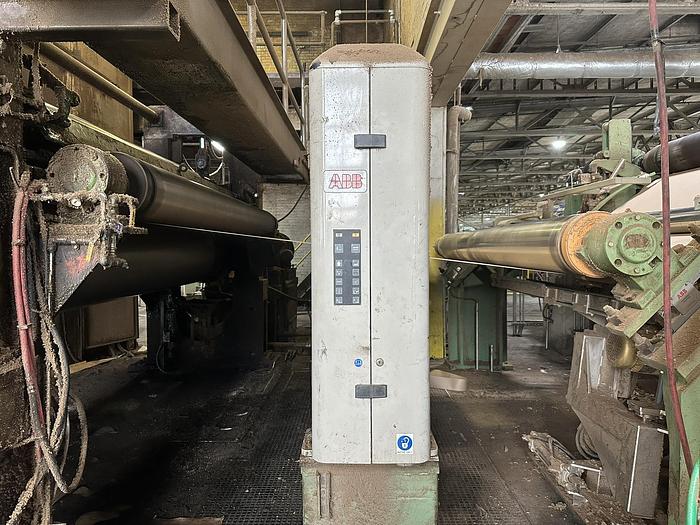

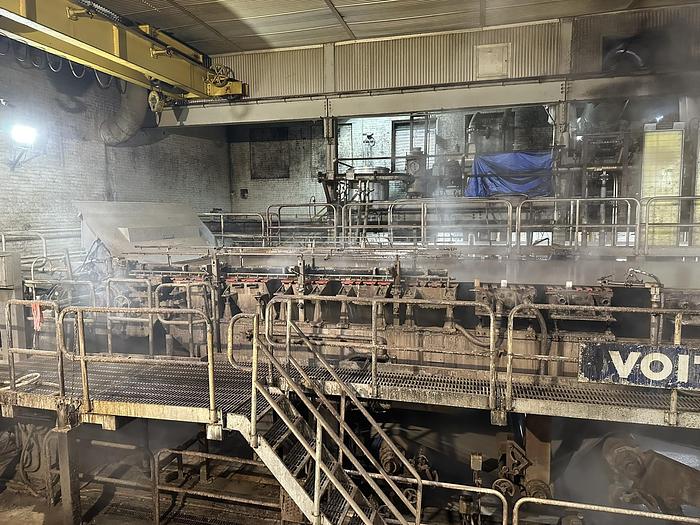

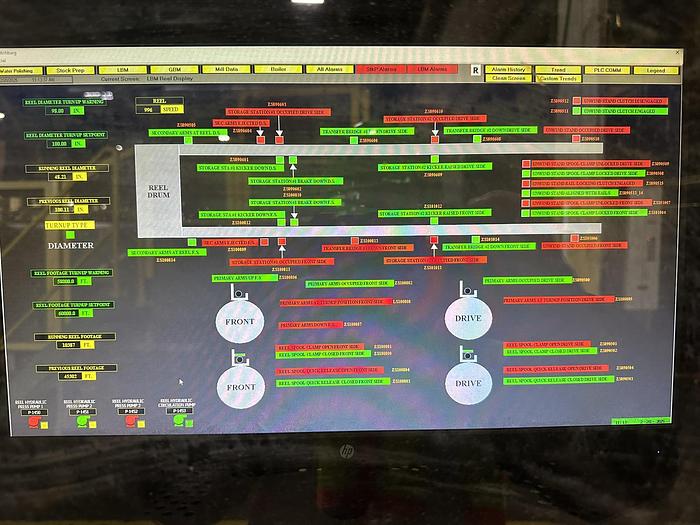

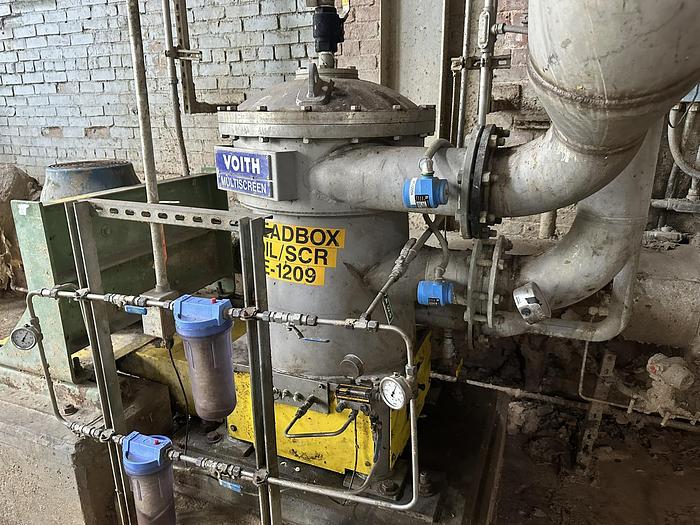

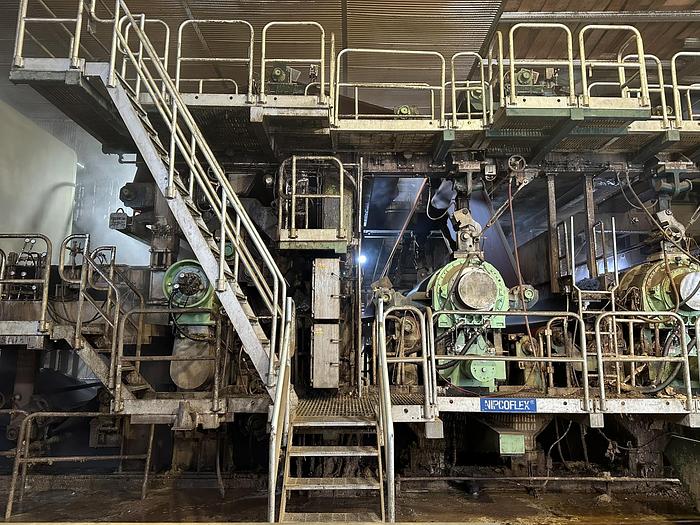

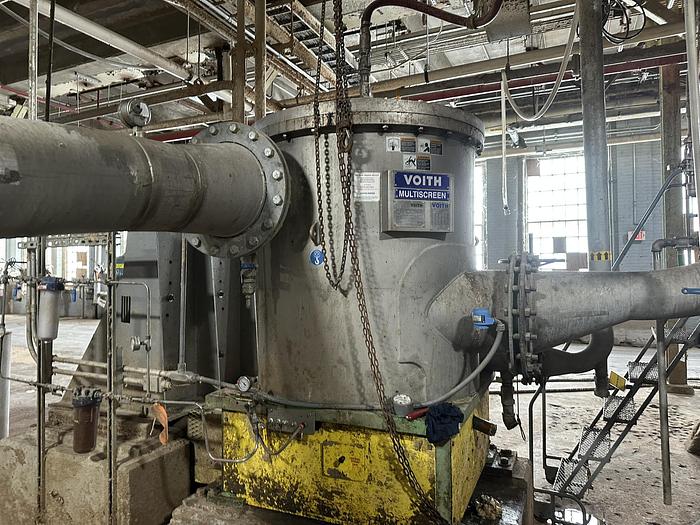

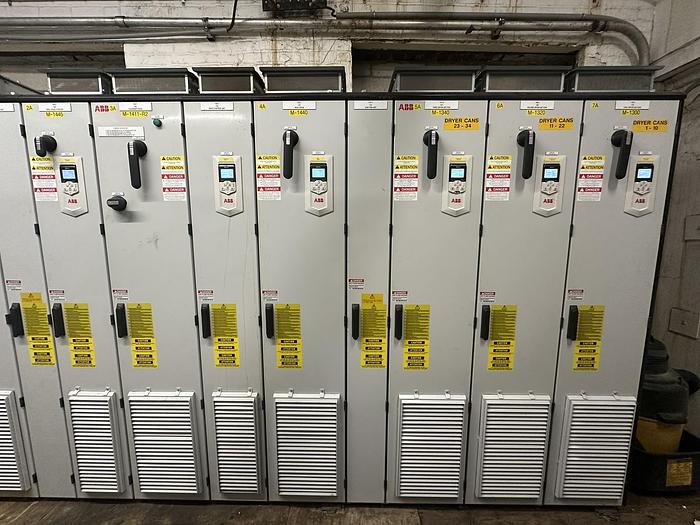

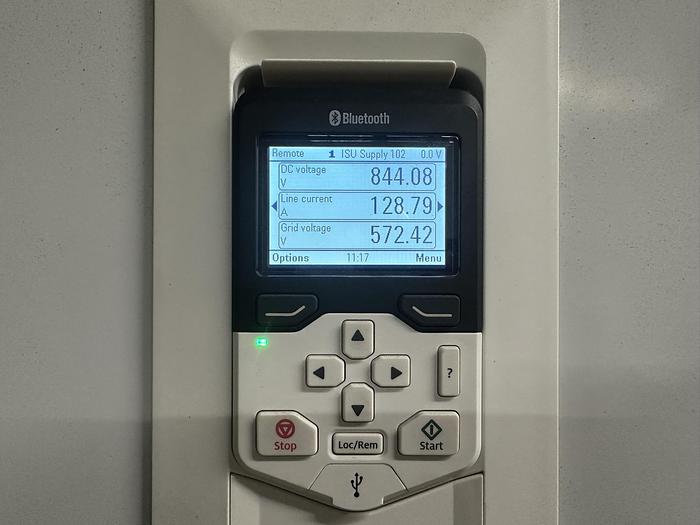

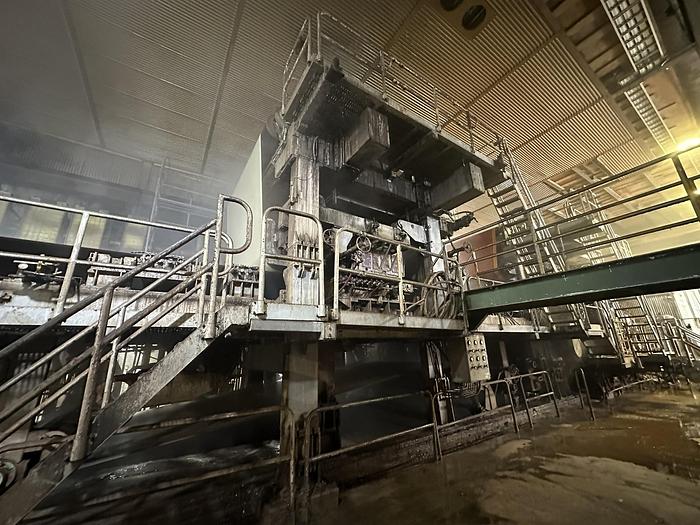

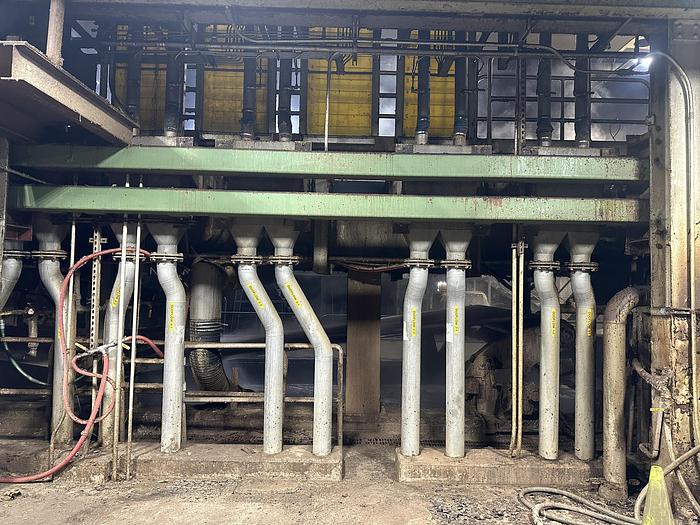

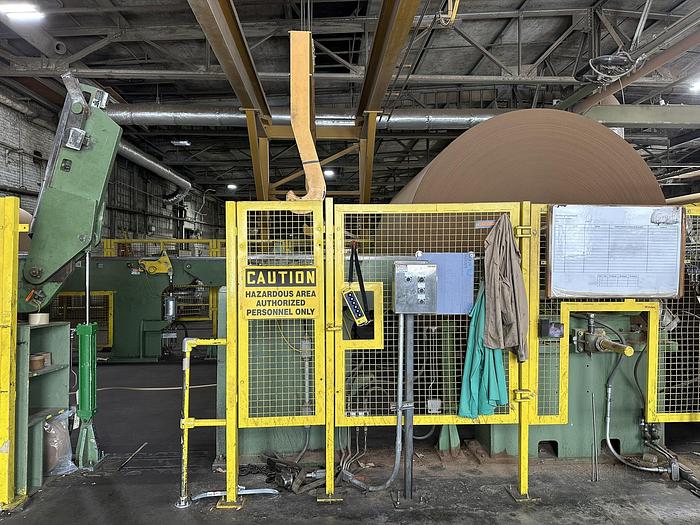

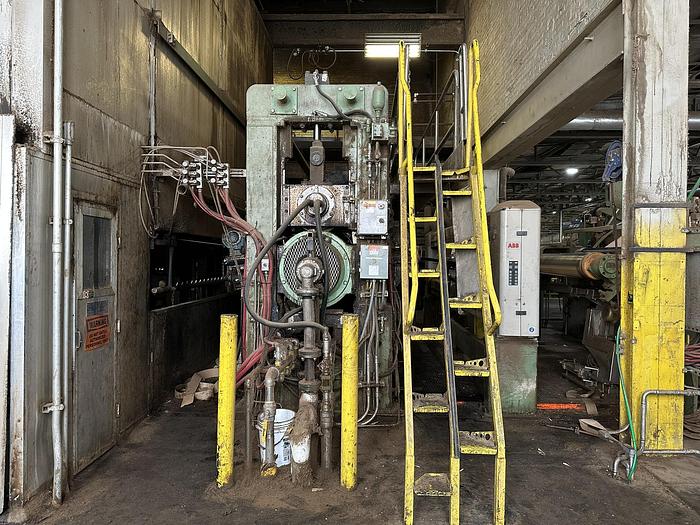

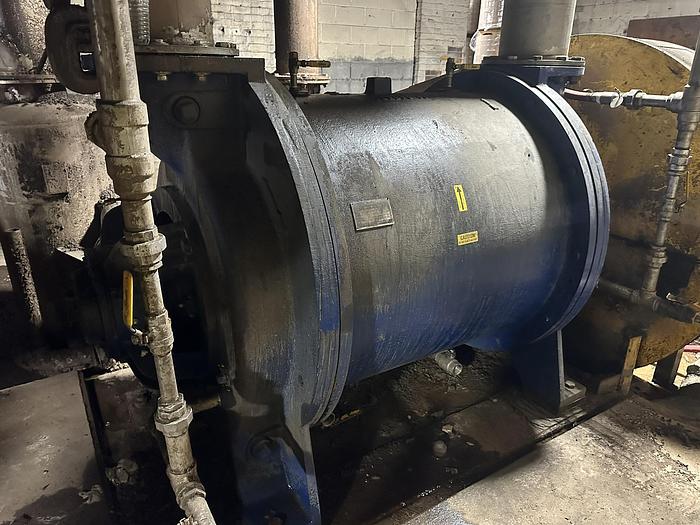

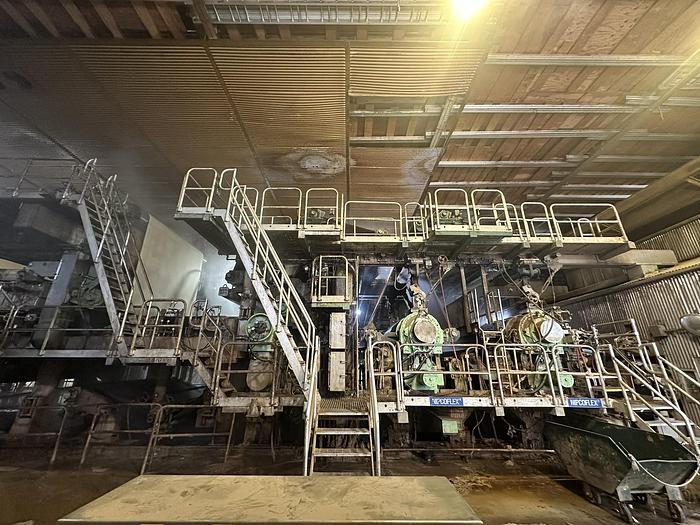

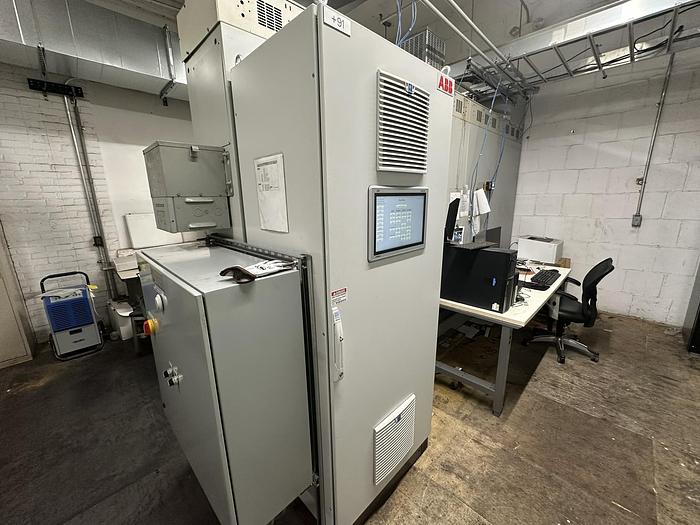

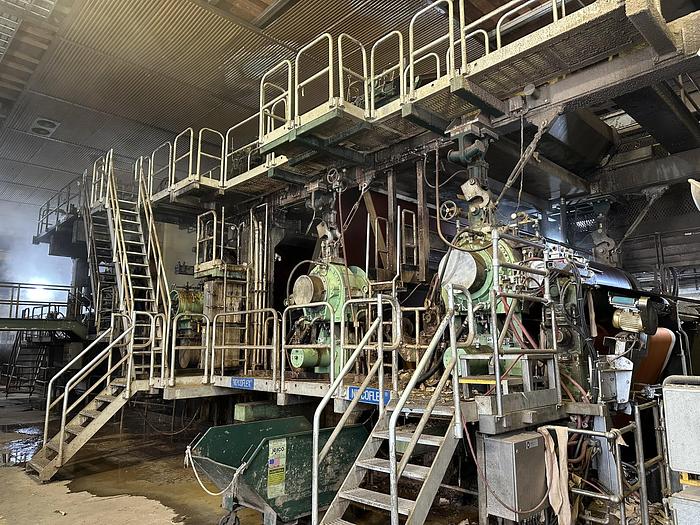

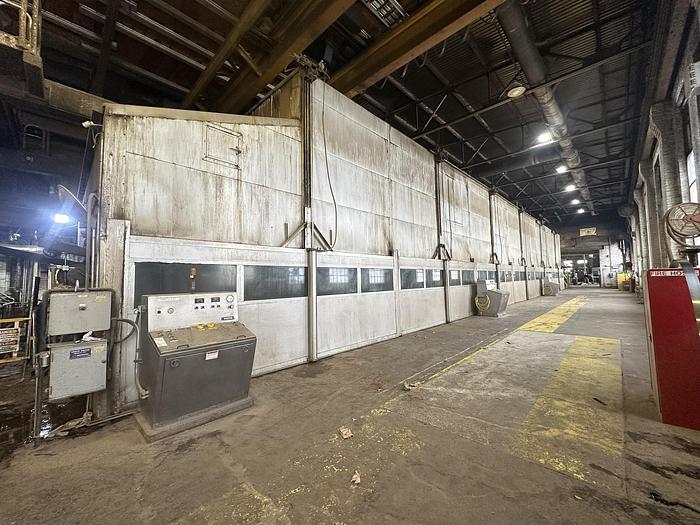

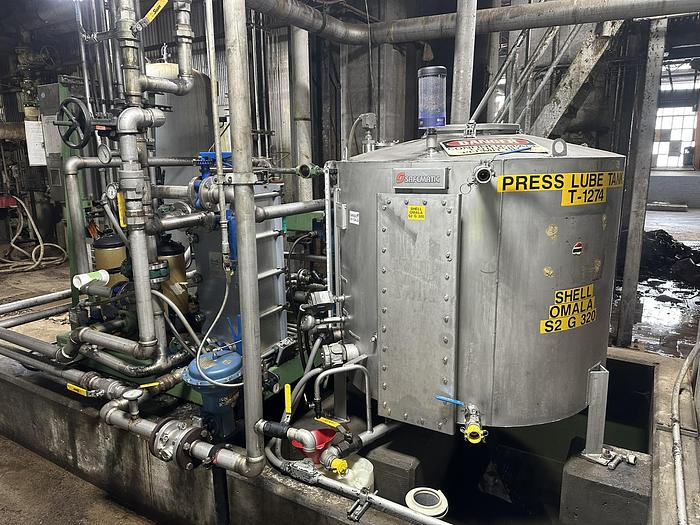

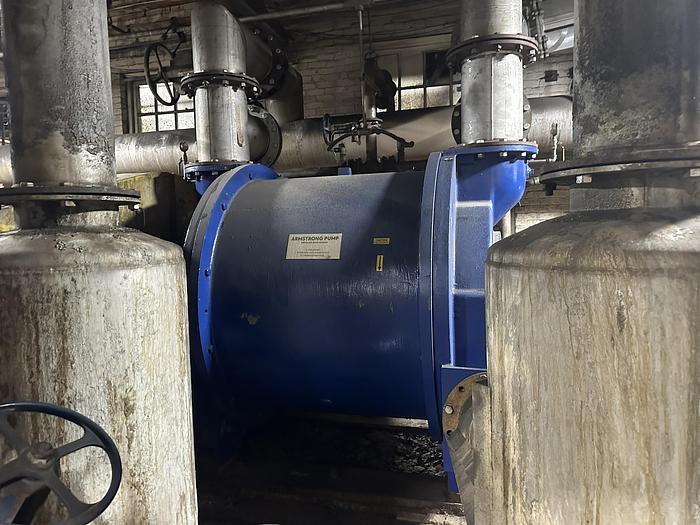

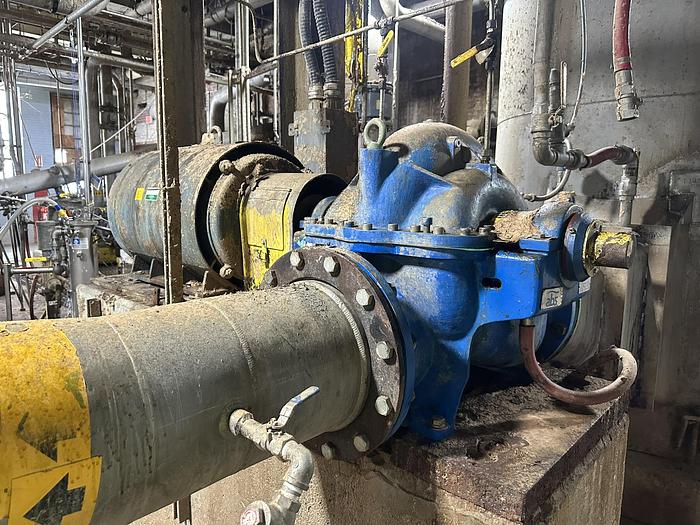

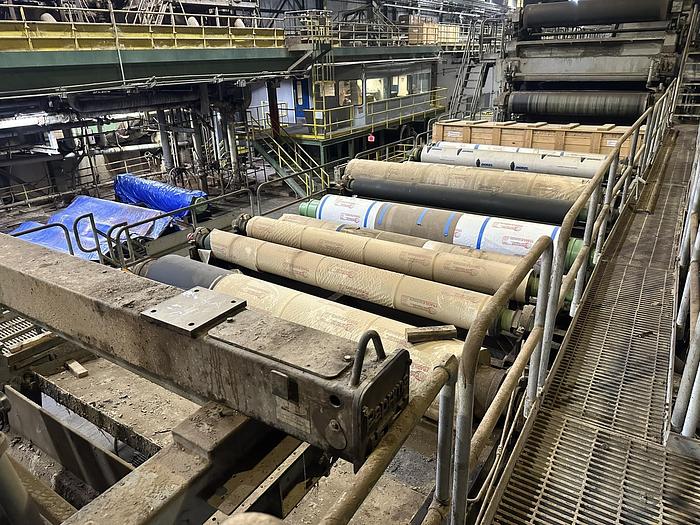

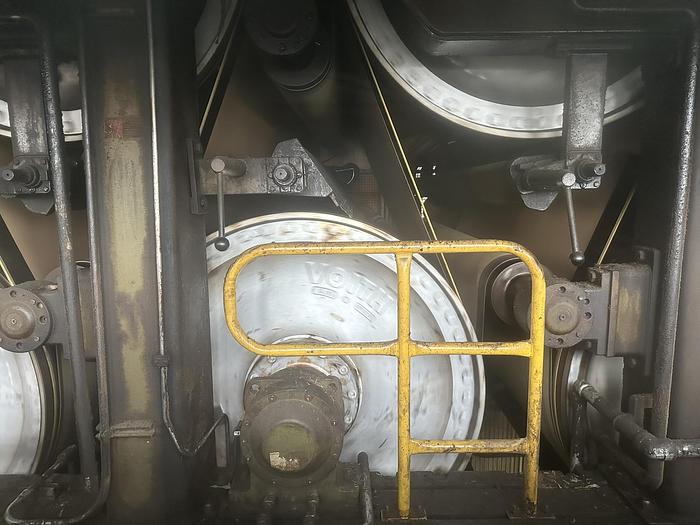

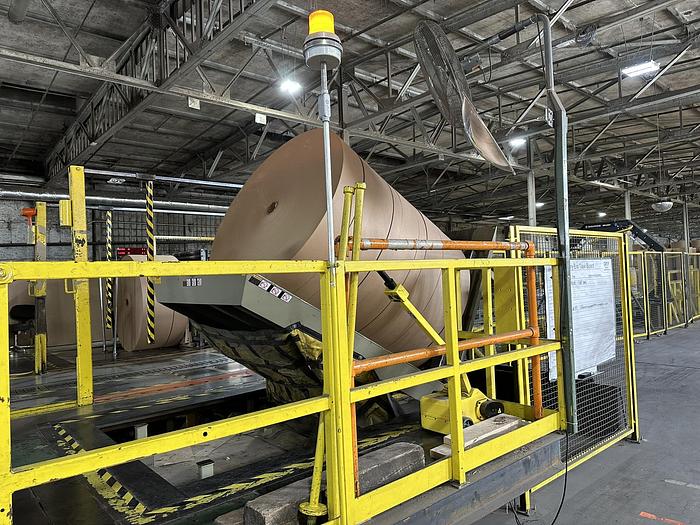

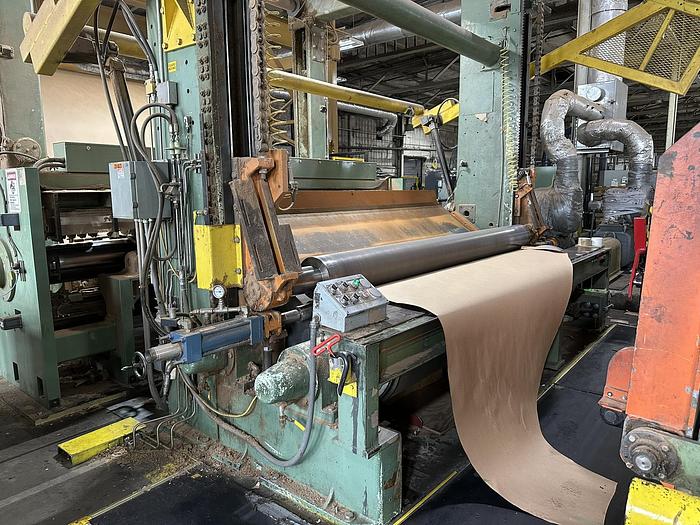

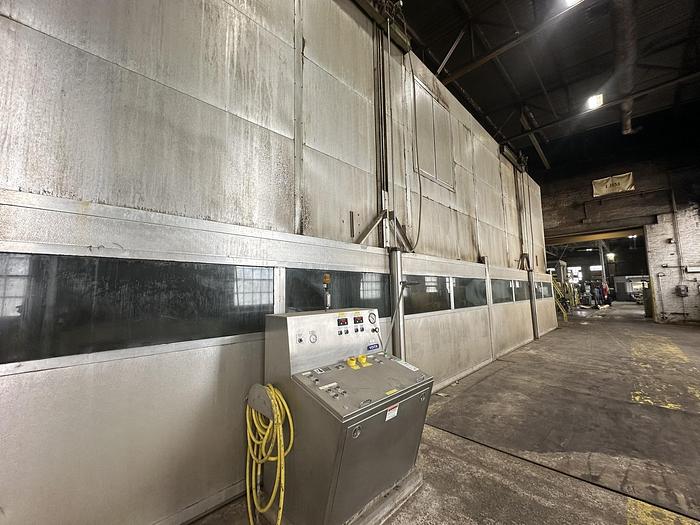

Voith Fourdrinier, 960" C/L Breast Roll to C/L Suction Couch Roll, Hydraulic Headbox, Duoformer Top Dewatering Unit, Felted Lumpbreaker Section with Dual Lumpbreaker Rolls, 5200 PLI Double Felted 1st Press, 5200 PLI Single Felted 2nd Press, Enclosed Dryer Hood, (34) 72" Diameter 150 PSI Coded Dryers, Top and Bottom Dryer Felts, Reel, Beloit Winder, (6) Nash 904 Vacuum Pumps, (30) Goulds Pumps, 2019 ABB A/C Machine Drives, (3) Voith Approach Flow Screens, Piping, Instrumentation, Valves, Tank Agitators

Currently, the drive system is set to operate at a maximum speed of 1,500 feet per minute (ft/min). While the drives were initially designed to accommodate a future maximum speed of 2,000 ft/min, some components may require motor or gearbox replacements to reach that speed.
