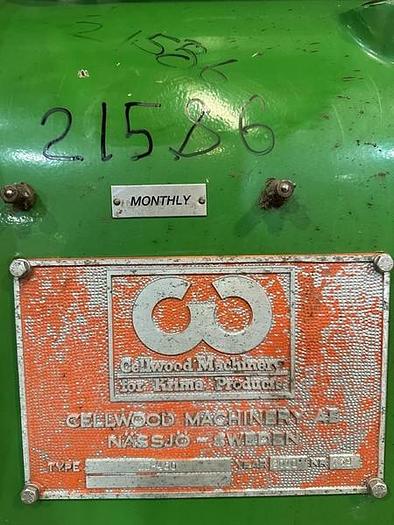

Cellwood Krima hot disperger system with the capacity 60 BDTPD #44819

Used Cellwood Krima hot disperger system with the capacity 60 BDTPD. Previously used at the pulp paper mill to improve fiber properties, reduce bacteria, soften dirt and sticky contaminants for a more efficient dispersing. Retention time is 2 minutes at a temperature of up to 248°F (120°C). Main equipment of the system:

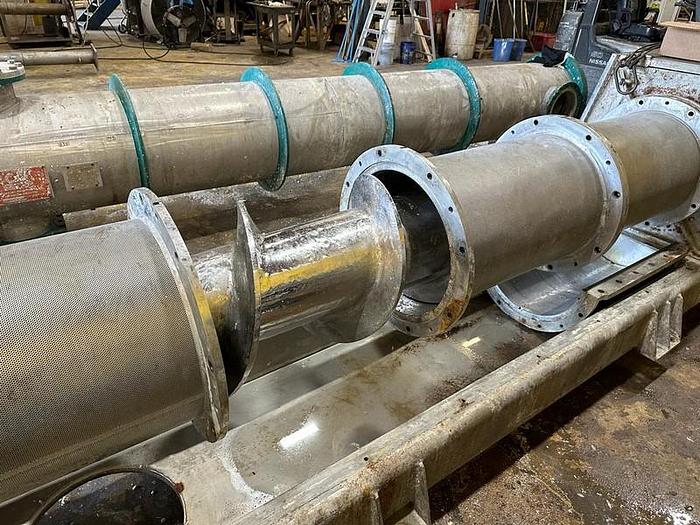

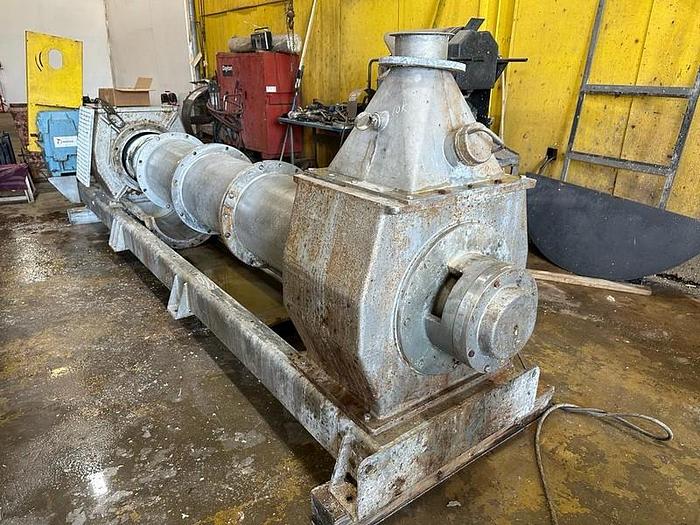

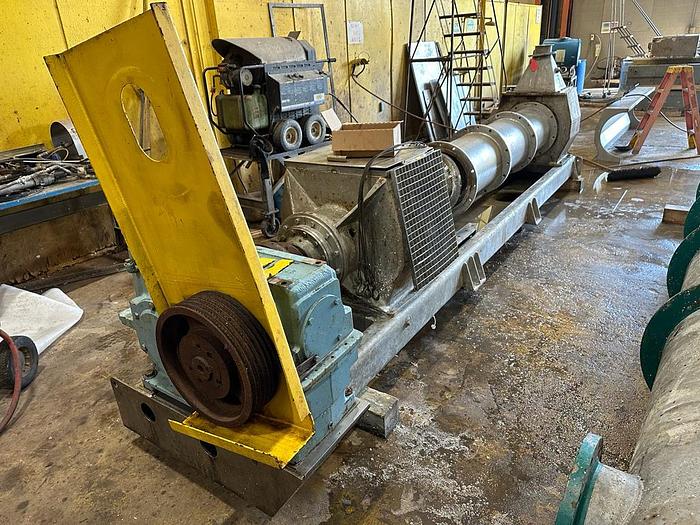

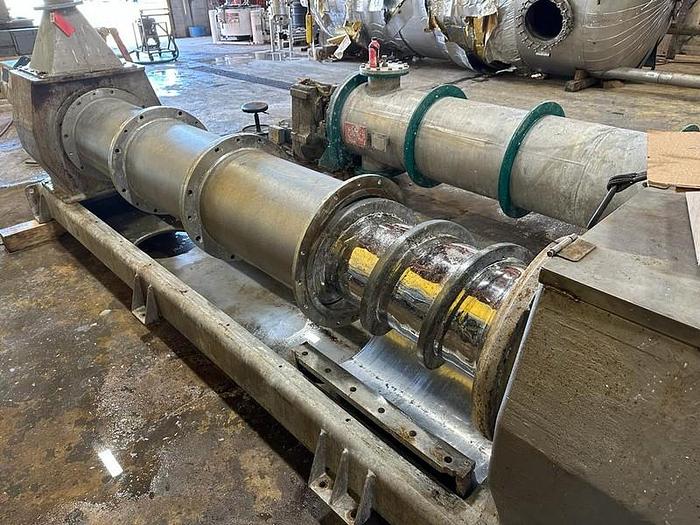

Thune dewatering screw press.

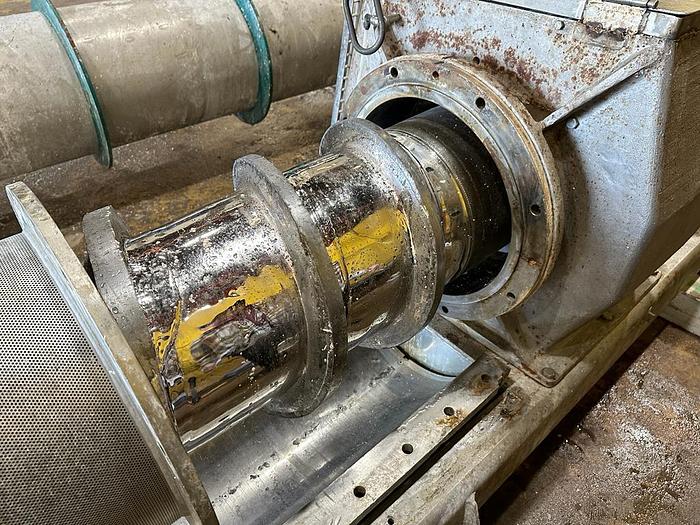

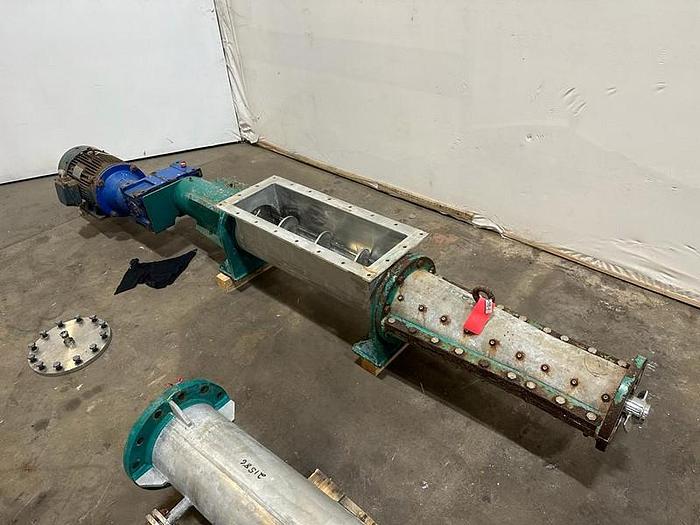

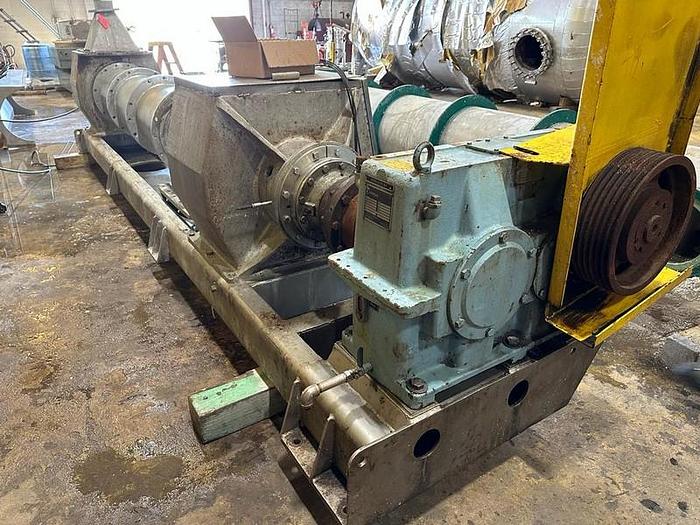

Plug screw with a pre-dispersing effect.

Pulp shredder that is installed before heater.

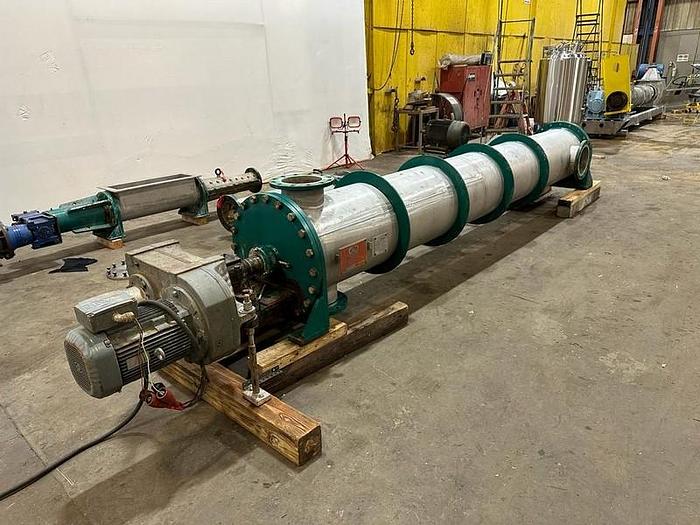

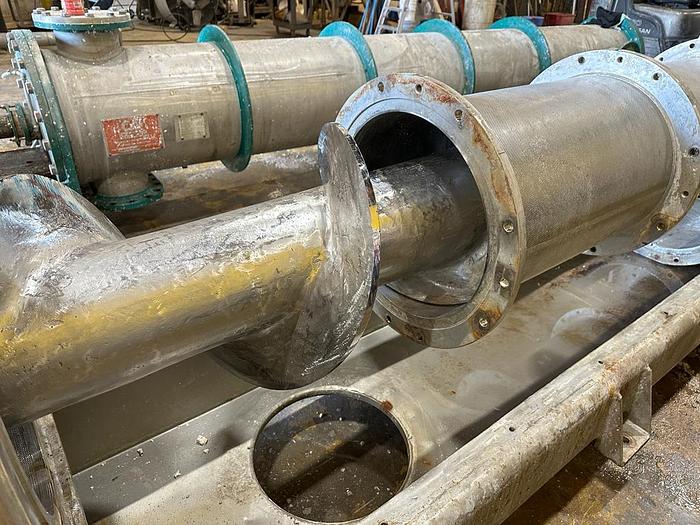

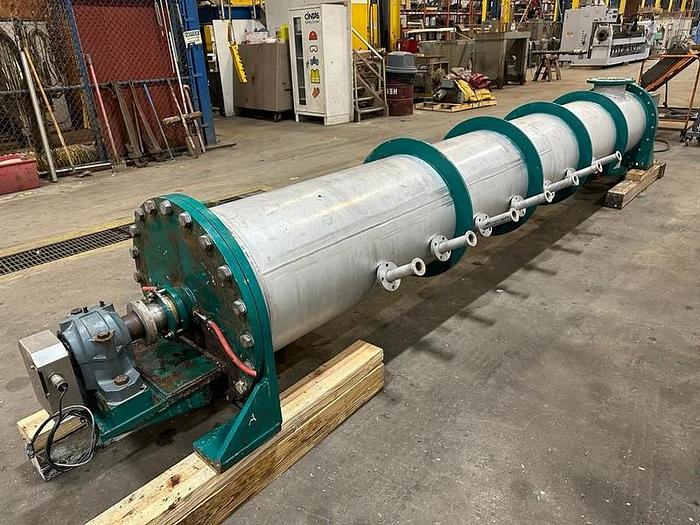

Pulp pre-heater where pulp is heated to a uniform temperature 90-120°C, depending on raw material.

Infeeder that feeds the pulp from the pre-heater to the disperser.

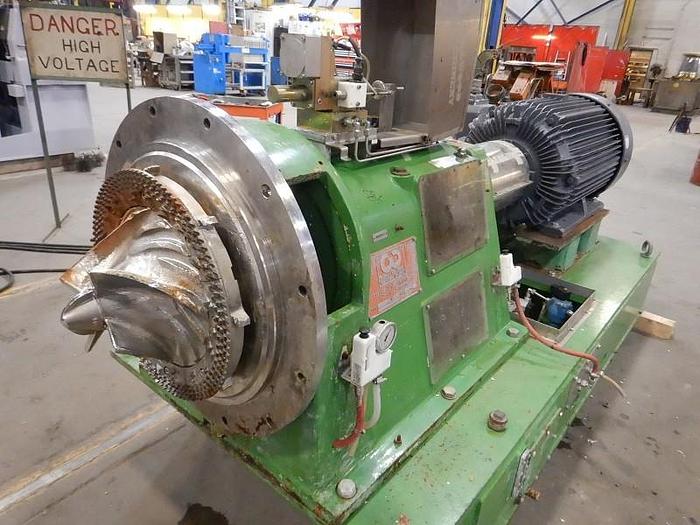

Pulp disperser where fibers pass through a narrow gap between rotating discs.

With control panels.
