Used 24″ laboratory paper machine in excellent condition #43993

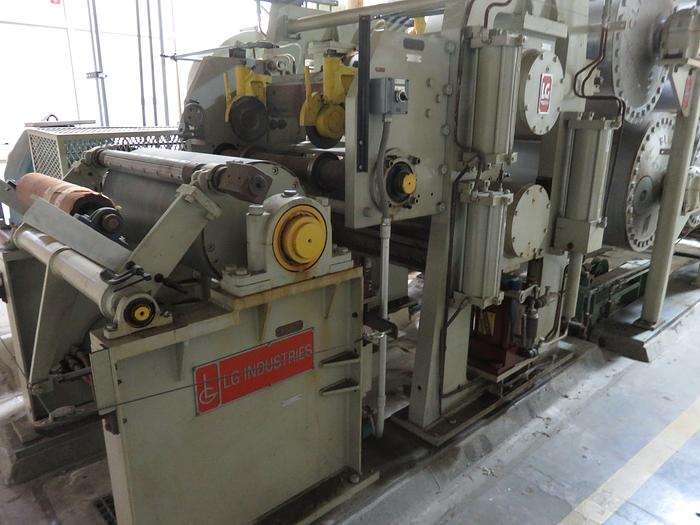

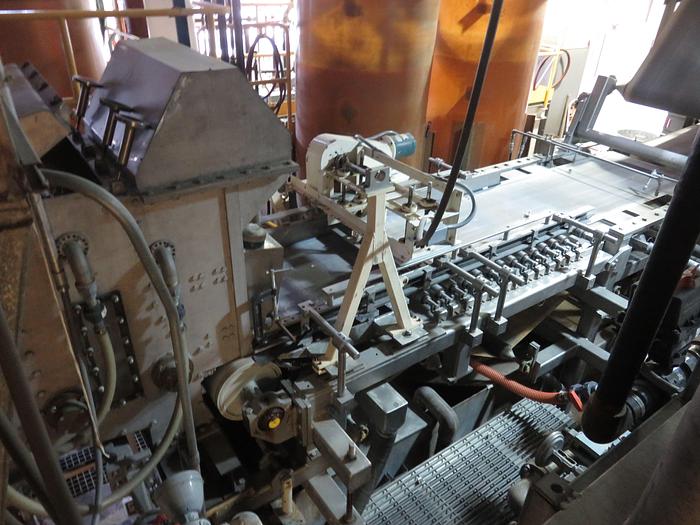

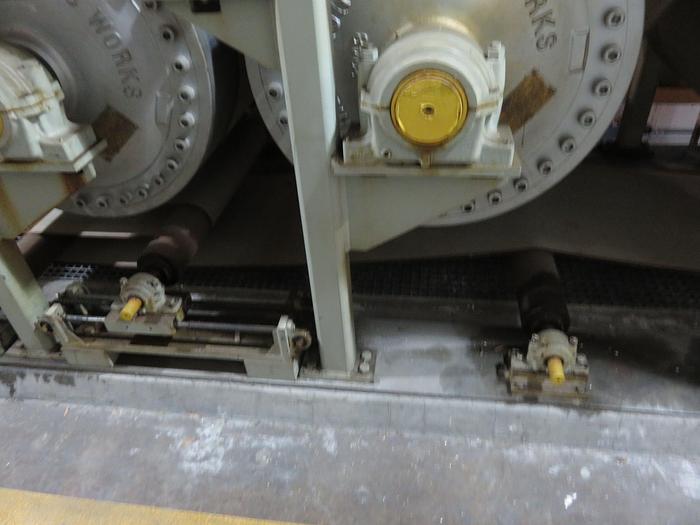

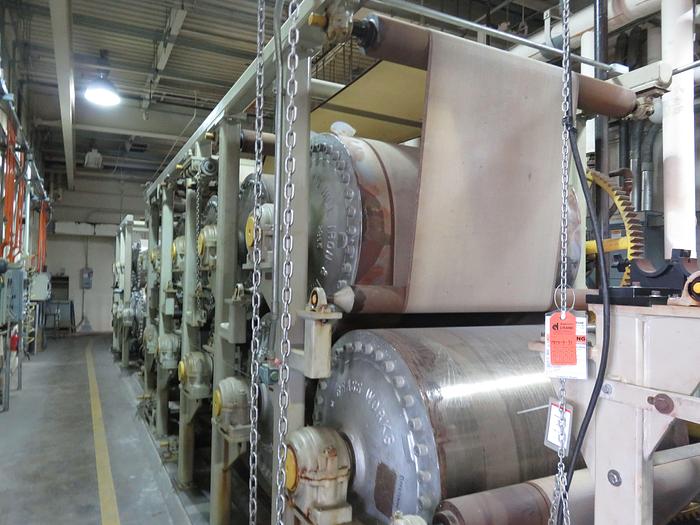

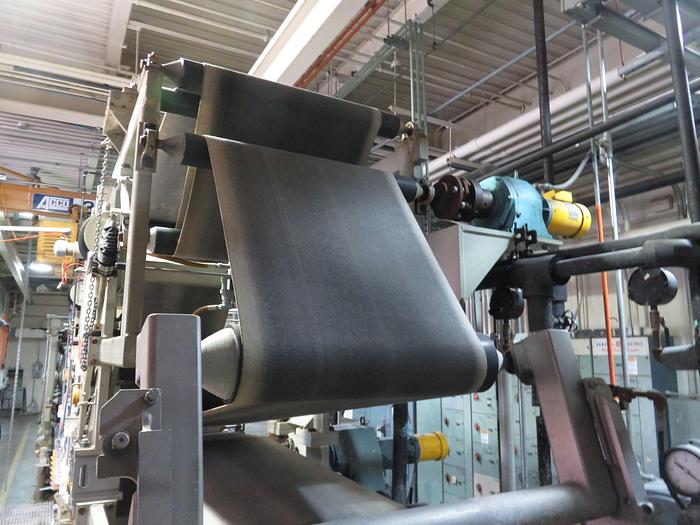

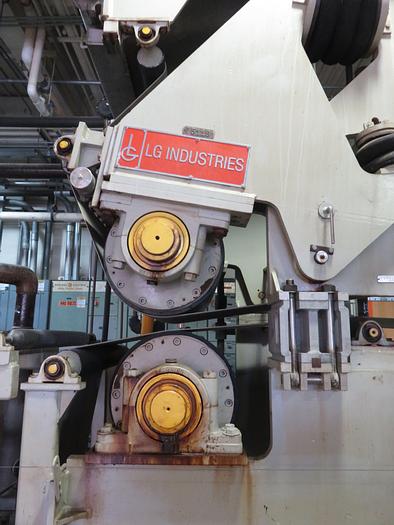

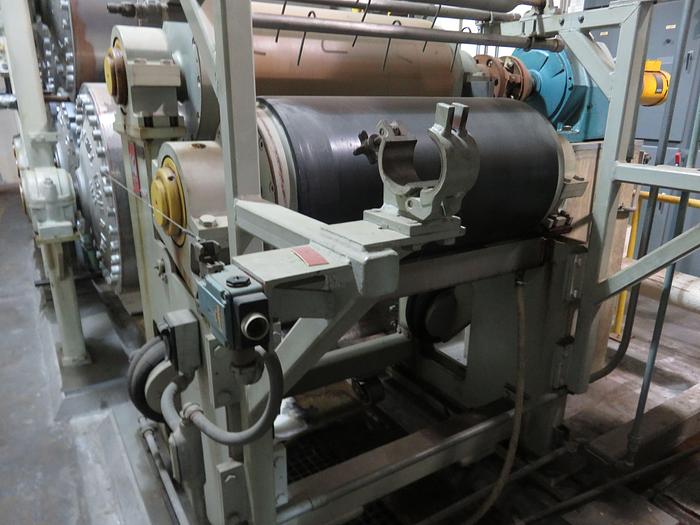

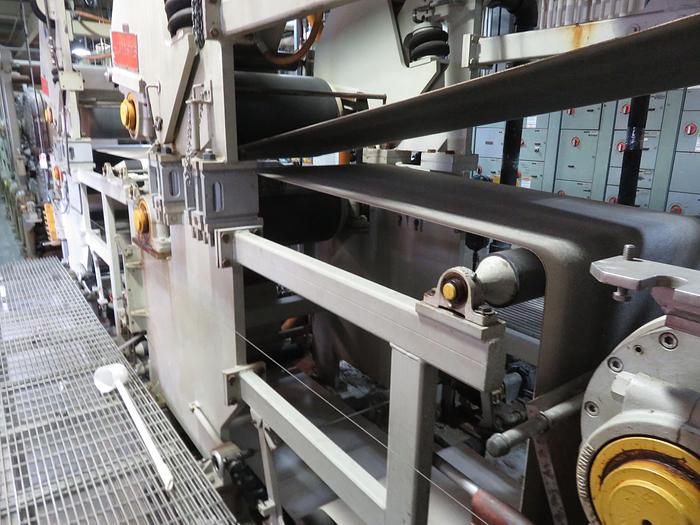

Used Hogenkamp stainless steel headbox with 27″ pond. Estimated 24″ trim. Last made 20″ paper. (2) internal dilution rolls, bar thickness adjustment reported from 6 mil to 60 mil. 12″ o.d. breast roll, 12′ Stainless Steel Fourdrinier section with (14) stainless steel felt rollers and (3) stainless steel suction boxes, 16″ x 32″ rubber covered roll, (2) LG Industries press sections with rubber covered blind drilled rolls. First dryer section consists of (10) 48″ x 36″ o.d. dryer rolls – (9) are Sandy Hill and (1) is Black Clawson. All are National Board stamped, 150 psi. Shell 7/8″, head (1) 1/4″. LG rope stretch. Inclined air operated S-wrap type coater. 2nd dryer section consisting of (3) Sandy Hill and (3) Black Clawson. Same specs. LG 2 roll calender with 16″ x 32″ top roll and 18″ x 32″ bottom roll with Mt Hope bowed roll and idler roll. Edge trim section. Surface winder with 32″ x 16″ drum. Nash 701 vacuum pump with a second Nash vacuum pump. Goulds pumps, Andritz R12MA refiner, 30″ Sweco, and LG 36″ diameter stainless steel pulper. (4) Fiberglass open top tanks approx 500 gallon, dish bottom with 3″ center discharge with 18″ discharge height, on 4 legs, overall height 9′ with Lightining 1.5 HP 205/220/440 volt motor and gearbox with 7′ x 2″ SS shaft with 2 sets of blades. (1) pulper and (2) refiners

(2) Raven 66″ OD. x 72″ H 1000 gallon fiberglass tanks with dish bottom on leg and agitator.

(1) Baeuerle and Morris stainless steel open top tank, approx 3000 gallon, 9′ x 68″ x 78″ with cone bottom and 3″ discharge, 18″ discharge height on 4 legs.
