Voith Suction Pick Up Press 24" Diameter #32069
Sold
Voith Suction Pick Up Press 24" Diameter #32069
Available quantity:1
Description

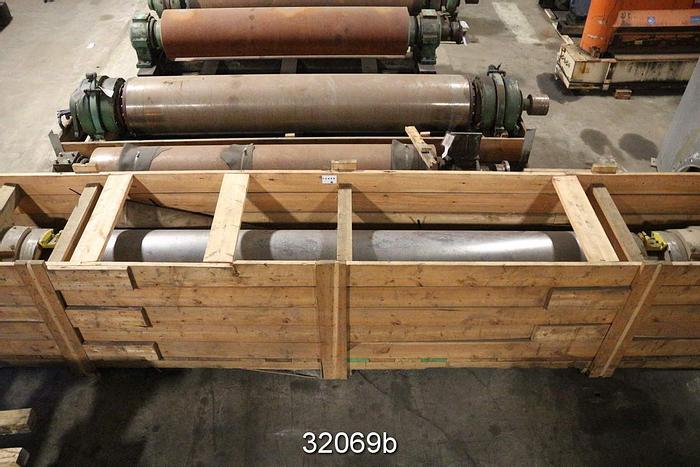

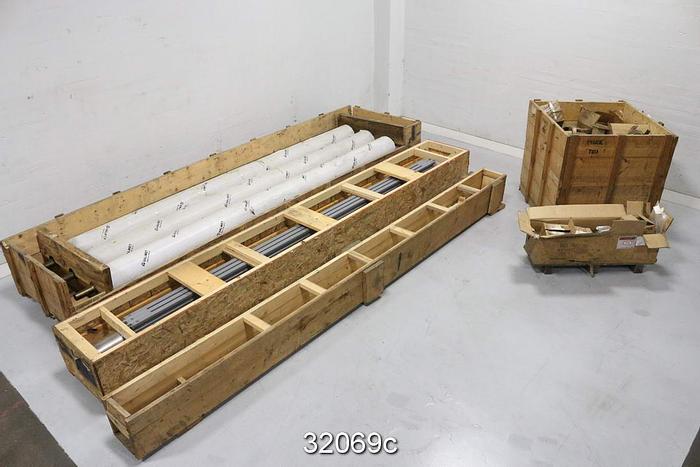

New Uninstalled Valmet Suction Pick Up Press, 24" Diameter Stainless Steel Suction Roll, 1.5" Shell Thickness, 148" Drilled Face Length, 161" Overall Face, 3/8" Drilled Hole Diameter, 17.5' Bearing Centers, Includes:
-(2) Aes Uhle Boxes, 158" Foil Length, Stainless Steel, With Shower Assembly And Series Emo Iii Oscilator Controls

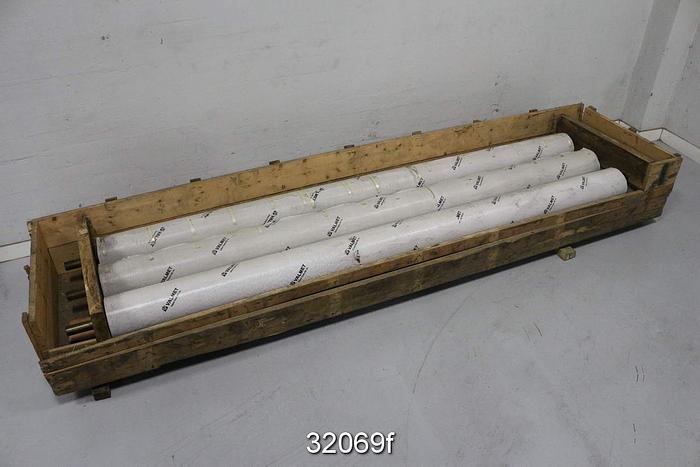

-(3) Valmet Felt Rolls, 159" Face Length, 12" Diameter, 179" Overall Length, Nilon/ Composite Material,
-(2) Aes Vacuum Foils, 96" Length
-aes Shower Model C-32, Series Emo Iii, 17' Total Length, .5" Nozzle Diameter, 6" Nozzle Gap Spacing, Pressure Rating 700 Psi, With Aes Oscilator Type 4, Series Emo Iii, Serial Number D-22783 Rev 18, Casting Lr-99202, With High Pressure Filter Model 770a-5-28-95,

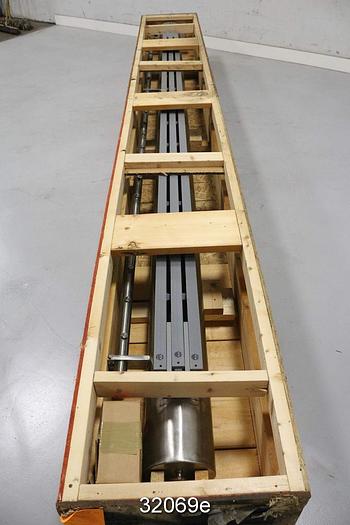

-(1) Horizontal Felt Stretch Assembly, Complete With Framing And Rails
Specifications
Manufacturer | VALMET |
Condition | Unused |
Stock Number | 32069 |
Size | 148" |
Material | STAINLESS STEEL |
